SILICON MICA

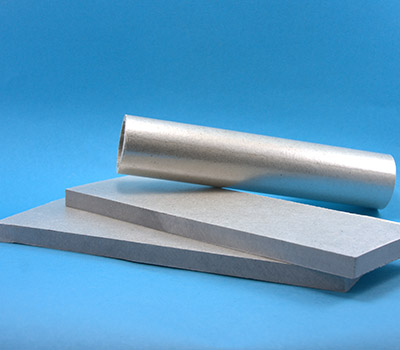

Mica possesses exceptional properties resisting everything from fire, electricity, chemicals to radiation and at the same time is environmentally safe. Rigid mica sheets consiststing of muscovite or phlogopite mica impregnated with a high temperature silicon binder have unique dielectric, thermal and mechanical properties. Superior in intensity, incombustibility and are flame resistant withstanding temperatures up to 800°C. Applications include but are not limited to thermal protection barriers where mechanical strength and high compression and pressure at high temperature is involved. As insulation between high temperature heated platens and moulds in hydraulic and forging presses. As high temperature insulation of electrode arms and buss-bars in electrical, induction and arc furnaces. Innumerable other uses.

Flexible mica sheets or rolls consisting of muscovite or phlogopite mica impregnated with a high temperature silicon binder are available plain or laminated with glass cloth or ceramic felt. Temperature resistant up to 1000°C (phlogopite). Mainly used as slip plane insulation between the crucible and induction coil in induction furnaces but with a wide variety of other uses.

Mica plates are laminates used in extreme conditions, this product has good properties like high heat resistance, flame resistance, low thermal conductivity, high mechanical strength, easy machineability, good electrical properties, low sensitivity to chemicals, Asbestos free and non-toxic.

Technical Data

This data, while believed to be accurate and based on reliable analytical methods, is for informational purposes only. Data supplied above are "Typical Values", not to be considered "Specification Values".

Product Units MICA M MICA P SINDANYO
THICKNESS RANGE 0,4 - 30 0,4 - 50 6 - 75
Mechanical
TENSILE STRENGTH MPa 100 100
FLEXURAL STRENGTH MPa 130 130 30
IMPACT STRENGTH
DENSITY g/cm2 2.1 2.1 1.6
WATER ABSORPTION % 1 1 15
ELECTRICAL
DIELECTRIC STRENGTH KV/mm 15 15 2.1
ARC RESISTANCE s 300 300 184
SURFACE RESISTANCE Ohms 1013 1013
DIELECTRIC CONSTANT Min 3.8 3.8
COMPARATIVE INDEX V 600 600
THERMAL
CONTINUOUS TEMPERATURE °C 500 700 700
THERMAL EXPANSION u/u/K 4,7 x 10-5 4,7 x 10-5 6,0 x 10-5
THERMAL CONDUCTIVITY W/mK 0.16 0.16 0.33
