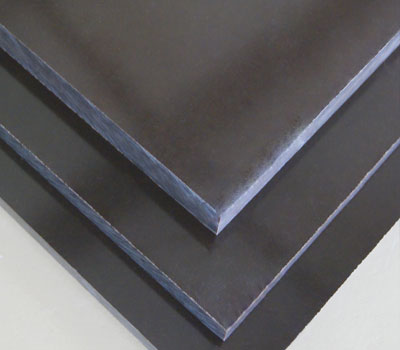

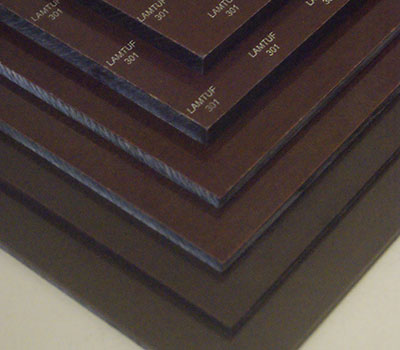

Phenolic Paper (SRBP)
Thermal class E, wide range of applications in the electrical field.
Meets EN 60893-3-4 PF CP201, NEMA X, DIN-7735-HP2061
A paper based laminate with good mechanical properties and can withstand low tension electrical applications under non humid conditions. Suitable for using as insulation structural parts.
Meets EN 60893-3-4 PF CP201, NEMA X, DIN-7735-HP2061
A paper based laminate with good mechanical properties and can withstand low tension electrical applications under non humid conditions. Suitable for using as insulation structural parts. Colour is black
Meets EN 60893-3-4 PF CP203, NEMA XX, DIN-7735-HP2061.5
A paper based laminate with good mechanical properties and better electrical properties than P1. Suitable for the power electrical industry for high voltage applications at power frequencies. High electrical strength under oil. Good electrical strength in air under normal humidity.
Meets EN 6083-3-4 PF CP206, NEMA XXX, DIN-7735-HP2061.6
A paper based laminate with good electrical and adequate mechanical properties with very low moisture absorption which makes it suitable for high voltage electrical application even under tropical conditions.
This data, while believed to be accurate and based on reliable analytical methods, is for informational purposes only. Data supplied above are "Typical Values", not to be considered "Specification Values".
| Product | Units | LAMTUF P1 | LAMTUF P2 | LAMTUF P3 |
|---|
| STANDARD | BS2572 | P1 | P2 | P3 |
| STANDARD | IEC60893-3-4 | PFCP201 | PFCP203 | PFCP206 |
| STANDARD | NEMA LI 11989 | X | XX | XXX |
| STANDARD | DIN7735 | HP2061 | HP2061,5 | HP2061,6 |
| Mechanical | ||||
| TENSILE STRENGTH | Kgf/cm2 | 1050 | 850 | 600 |
| FLEXURAL STRENTH | Kgf/cm2 | 1450 | 1450 | 1100 |
| SHEAR STRENGTH | Kgf/cm2 | 900 | 820 | 800 |
| IMPACT - CHARPY | Kg/m2 | 6.2 | 6.2 | 5.5 |
| SPECIFIC GRAVITY | 1.38 | 1.38 | 1.36 | |
| WATER ABSORPTION 3mm | mg | 270 | 95 | 72 |
| ELECTRICAL | ||||
| INSULATION RESISTANCE | ||||
| In water 24hrs @ 20°C | Meg Ohms | 25 | 150 | 5000 |
| ELECTRICAL STRENGTH | ||||
| In oil @ 90°C | ||||
| Flatwise (3mm) | kv/mm | 3 | 7.6 | 8.5 |
| Edgewise (3mm) | kv | 5 | 30 | 40 |
| TERMINAL CLASSIFICATION | E (120) | E (120) | E (120) |
