High Temperature Materials

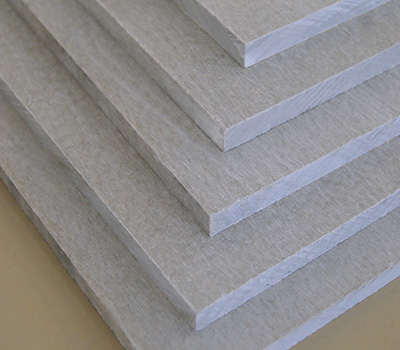

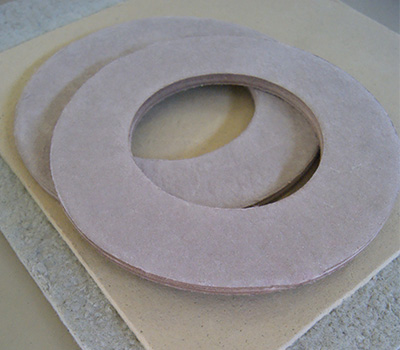

The leading industry standard for high temperature insulation boards, exhibiting excellent strength in demanding thermal applications even at temperatures up to 700°C. Proven to work even in the most arduous and harsh environments such as smelting, furnace insulation panels, cathode support pads, induction billet heater boxes, induction furnaces in aluminium, steel and glass works, as well as nuclear power plants
This data, while believed to be accurate and based on reliable analytical methods, is for informational purposes only. Data supplied above are "Typical Values", not to be considered "Specification Values".
| Product | Units | MICA M | MICA P | SINDANYO |
|---|
| THICKNESS RANGE | 0,4 - 30 | 0,4 - 50 | 6 - 75 |
| Mechanical | ||||
| TENSILE STRENGTH | MPa | 100 | 100 | |
| FLEXURAL STRENGTH | MPa | 130 | 130 | 30 |
| IMPACT STRENGTH | ||||
| DENSITY | g/cm2 | 2.1 | 2.1 | 1.6 |
| WATER ABSORPTION | % | 1 | 1 | 15 |
| ELECTRICAL | ||||
| DIELECTRIC STRENGTH | KV/mm | 15 | 15 | 2.1 |
| ARC RESISTANCE | s | 300 | 300 | 184 |
| SURFACE RESISTANCE | Ohms | 1013 | 1013 | |
| DIELECTRIC CONSTANT | Min | 3.8 | 3.8 | |
| COMPARATIVE INDEX | V | 600 | 600 |
| THERMAL | ||||
| CONTINUOUS TEMPERATURE | °C | 500 | 700 | 700 |
| THERMAL EXPANSION | u/u/K | 4,7 x 10-5 | 4,7 x 10-5 | 6,0 x 10-5 |
| THERMAL CONDUCTIVITY | W/mK | 0.16 | 0.16 | 0.33 |
